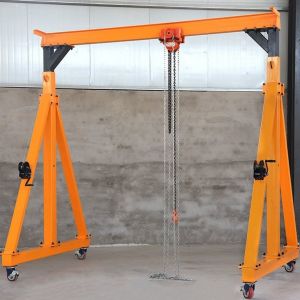

Aluminum Mobile Gantry Crane Span 3m-10m Hoist Trolley
Product description of Aluminum Mobile Gantry Crane
Aluminum Mobile Gantry Crane is widely used in the workshop, warehouses, garage, and many other indoor and outdoor places for its equipped with the features of light dead weight and easy operation. Compared with the heavy-duty gantries, portable gantries are available to move and disassemble from one work site to another easily.
Technical parameters of Aluminum Mobile Gantry Crane
| Loading capacity | 0.25t ~ 20t |
| Lifting height | 3 ~ 10 m or customized |
| Lifting speed | Single speed: 3~ 8 m/min; or customized |
| Span | 3~10 m |
| Lifting mechanism | Hoist trolley |
| Working class | A2 ~ A3 |
| Working temperature | -20-+40℃ |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-24 / 36V |
| Motor protection class | IP54 IP55 IP65 |
| Control way | Ground handle control(Push button),wireless remote control |
| Safety device | Buffer, current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow,Red or Customzied |
Features of Portable Gantry Crane
Its unique features and security have been proven to meet the needs of users in various industries
Movable, to meet the lifting needs of different stations, especially for maintenance stations;
Adjustable height, good product passability, strong product applicability;
Modular combination, simple and quick disassembly, suitable for different station hoisting transfer field;
Packing and shipping of Portable Gantry Crane
